Description
DESIGNED FOR CCTV.SPECIAL CCTV MONITORS REDUCE SCREEN BURN & CAN BE USED FOR 24/7 MONITORING UNLIKE TELEVISIONS & OTHER SCREENS

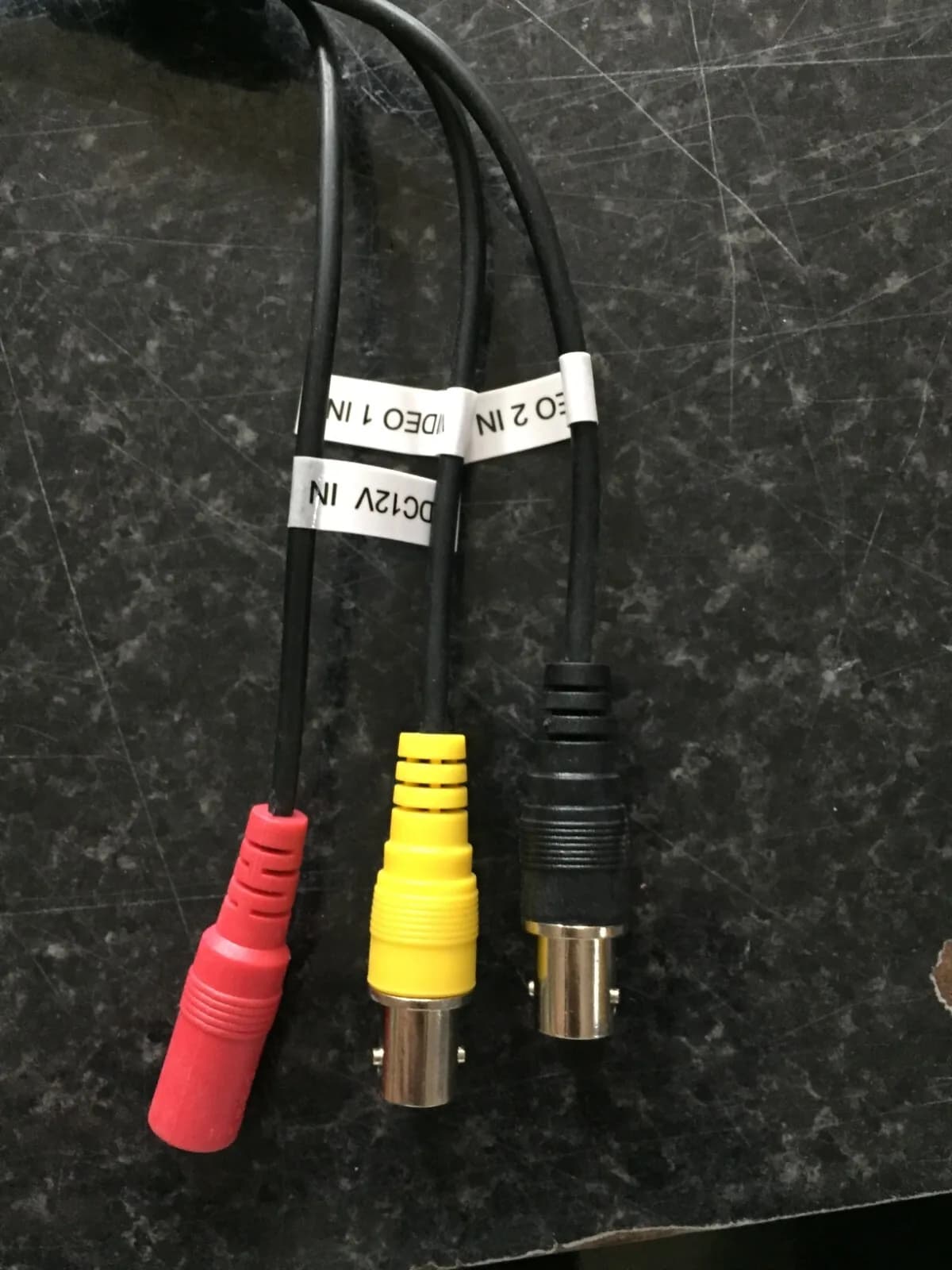

PLEASE ENSURE YOU HAVE KNOWLEDGE OF WHAT YOU ARE BUYING REFER TO CONNECTIONS PICTURES ETC
BOX INCLUDES
Power Supply / Remote Control / User Manual
Video Interface
BNC Input x 2
Audio Interface
None
Power Interface
DC In x 1
Termination
75 Ohms (Automatic termination)
Safety & EMC Certification
ROHS-2, CE, FCC, C-Tick, E13, WEEE, Energy Star
Vesa Standard Mount
44 x 24 mm (in base)
Stand Type
Multi Fun ctional Desktop/Wall mount
Colour
Black
Packing Dimension
270 (W) x 210 (H) x 120 (D) mm
NET Weight
0.8 Kg
GROSS Weight
1.1 Kg

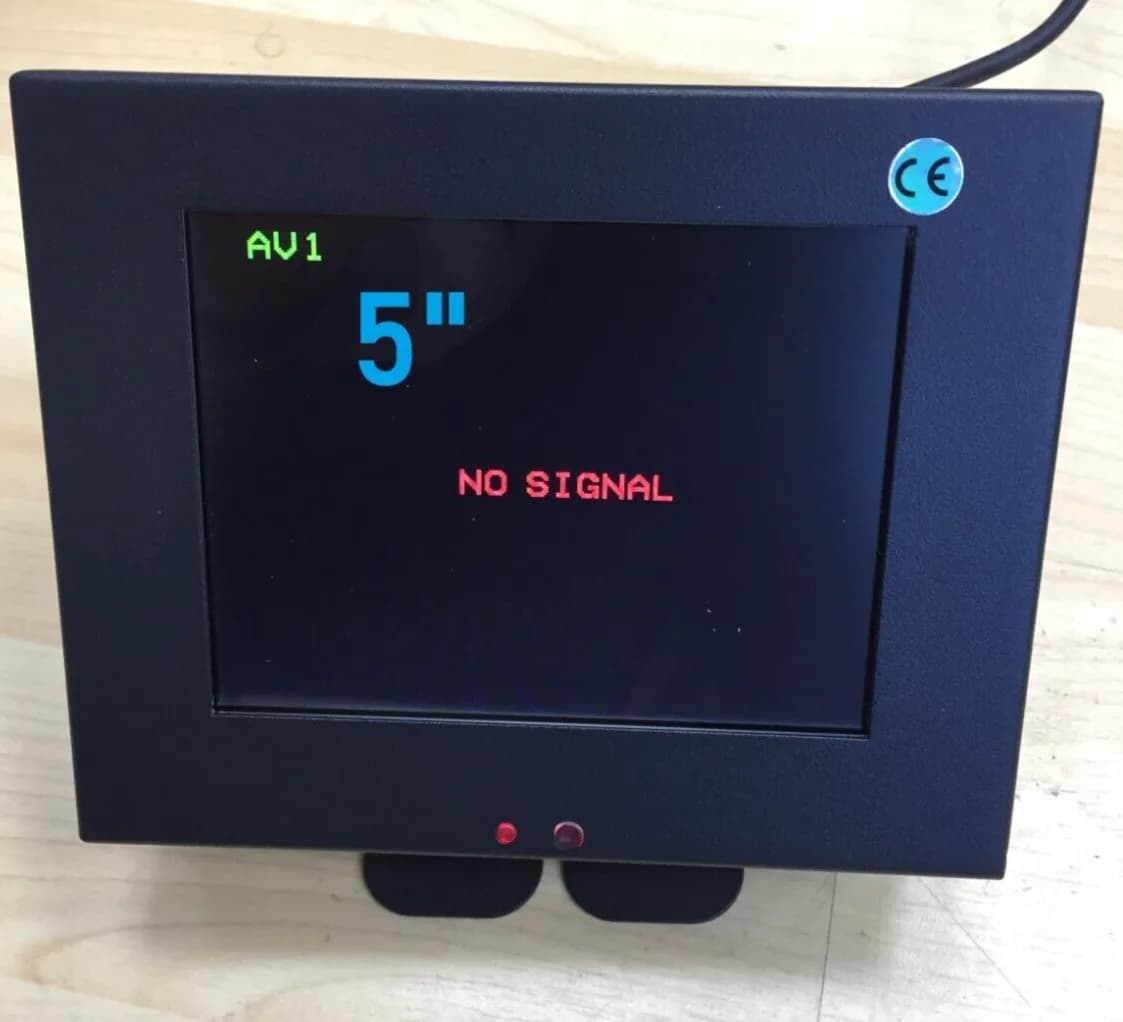

Panel Type
5” (4:3) LED Monitor With Glass
Front
Case Type
Metal
Maximum Resolution
640 (H) x 480 (V)
Active Display Area
101.568 x 76.17 6 (V) mm
Pixel Pitch
0.0529 (H) x 0.1587 (V) mm
Bezel Thickness
24.21 mm
Contrast Ratio
500: 1 Ratio
Brightness
200 cd/ m²
Response Time
10ms – 15ms
Viewing Angle
U/D: 50° / 70°, L/R: 70° / 70°
Display Colours
16.7 M
Video Synchronization
Yes
PC Compatible Frequency
30-80KHz(H) / 50-75Hz(V) Max.
640 x 480
Adjustable Colour Temperature
9300K / 6500K / 5800K / User
Video Compatiblity
Multi-Standard for NTSC / PAL
Aspect Ratio
4: 3 Ratio
VGA Auto Frequency correction
Yes
Number of Speakers
No
Sound Demodulation
N/A
Mute
N/A
Work Humidity
20 % – 70 %
Work Temperature
-10 to 50 °C
Volume +/- Power On/Off
Yes
